What’s the square can?
It is made of three pieces of metal sheet (mostly tinplate), the can body, the bottom and the lid. The can is square shaped. The body of the can has embossing on all sides, and on four corners. The big square can range: capacity 15-20L, diagonal 300-320mm, height 220-400mm.
Equipment composition of full-automatic production line of big square can
Big square can fully automatic production line operating process
First place the cut can body materials into the automatic resistance welding machine’s feeding table, Suck by the vacuum suckers,send the tin blanks to the feeding roller one by one.through the feeding roller, the single tin blank is fed to the rounding roller to conduct rounding process, then it will be fed to the rounding forming mechanism to make rounding.The body is fed into the resistance welding machine and make welding after the accurate positioning. After welding, the can body is automatically fed into the rotary magnetic conveyor of the coating machine for outer coating, inner coating or inner powder coating, Which depends on customer’s various need.It is mainly used to prevent the side welding seam line from being exposed in air and rusting.The can body should be placed in induction drying oven to dry if it’s inner coating or inner powder coating.Afer drying, It will be fed to cooling device to make natural cooling.The cooled can body is then fed to the big square can combination machine, and the can body is in an upright state going through the uprighting conveyor. It is fed to the first automatic side welding seam indexing station by the clamps.The second station is square expanding.When the can body is in position, on the can body lifting tray which is controlled by a servo motor, and the can body is sent by this lifting tray to the square expanding mold to make square expanding.The third station is to make panel and corner embossing. When the can body is in position, on the can body lifting tray which is controlled by a servo motor, and the can body is sent by this lifting tray to the make panle and corner embossing at a time.The fourth station is top flanging, the fifth station is bottom flanging.The bottom flanging: the can will be sent to the bottom flanging mold lying on the upper part of the machine by lifting tray to make it. The top flanging:the upper cylinder will press the can body to the position of top flanging mold to make it. Both the top and bottom can body flanging are each driven by four cylinders. The sixth station is automatic lid detecting and feeding and seaming.After the above six procedures, the can will be reversed up and down by reversing device,and then make top seaming,this process is the same as the bottom seaming process.Lastly,the finished can is fed by conveyor to automatic leak tester station.After accurate air source inspection, unqualified products are detected and pushed to a fixed area, and qualified products will come to the packaging workbench for the final packaging process.

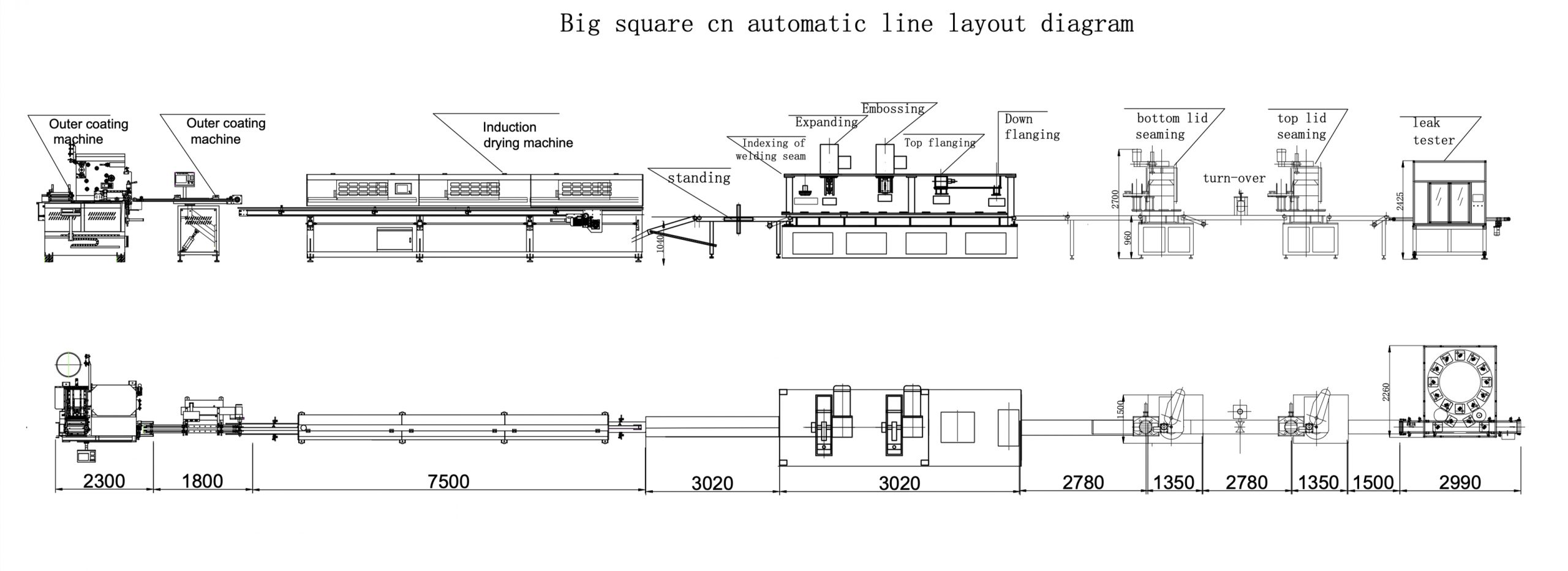

The Layout of the Production Line
Tin Can Making Artcraft
Advantages of the full-automatic production line of big square can
the whole production line adopts automatic computer programming control system, fully realizing the full automatic assembly line work.Only 1-2 workers are needed to complete the operation of the entire production line.The whole production line has fast production speed, high production efficiency, automatic fault detection system and low rejection rate.But compared to semi-automatic production line, the initial investment capital is larger. For the start-up enterprises,It is recommended to use semi-automatic production line with less capital in
Comparison of machines of Yixin and its counterparts
Yixin machines: all stations of the whole production line are processed with high hardness and imported wear-resistant materials. The imported guide rail and profile are combined with precise coordination of servo motor to ensure a fast conveying system. Eight-wheel can sealing machine head, The sealing quality is stable and fast .At the same time, the sealing machine head adopts special design, which has the characteristics of low noise and high efficiency.
Counterparts machines: most of the production line is made of domestic materials, common profile and domestic guide rail, combined with stepping motor,Which will be in some lack of stability and accuracy.Can sealing machine head only has four rollers, quality and speed will have a certain impact .At the same time the machine head adopts the old design, the production noise is bigger.
Applicable and applied industries
This production line is suitable for the production of square metal cans used in food, medicine, chemical, paint, edible oil and other industries.It can also be used in food can, paint can, edible oil can, paint can, lubricating oil can, etc.
Which countries and regions are applicable
Applicable to countries or regions where labor is difficult, unstable, or highly paid. Examples: Malaysia, Indonesia, Philippines, Vietnam, Thailand, India, dubai, Brazil, venezuela, etc.
Applicable to countries or regions with high output and high product quality.For example: Saudi Arabia, dubai, Russia, Canada, South Korea, Turkey, Europe, the United States and so on.
Why to choose Yixin products?
1. Established 20 years ago, Yixin technology is a well-known brand in the Chinese industry.
2. More than 80% of customers in China have used Yixin products.
3. Yixin technology has a strong technical team and professional after-sales service to provide customers with turnkey project and one-stop service.
4. Once choosing Yixin technology products, Yixin technology will provide you with the most professional technical advice and guidance from material selection, printing and typesetting, installation, commissioning to smooth production.
